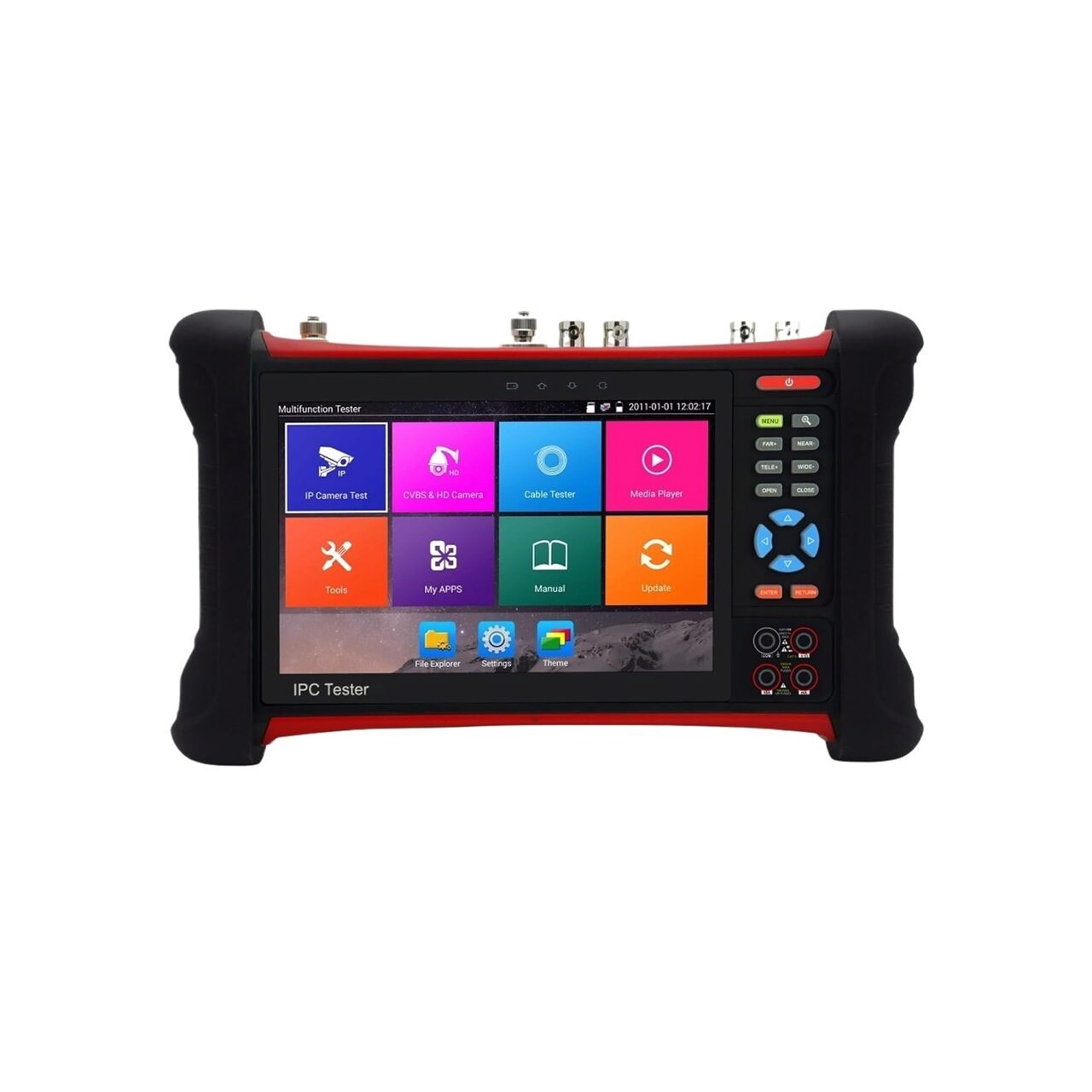

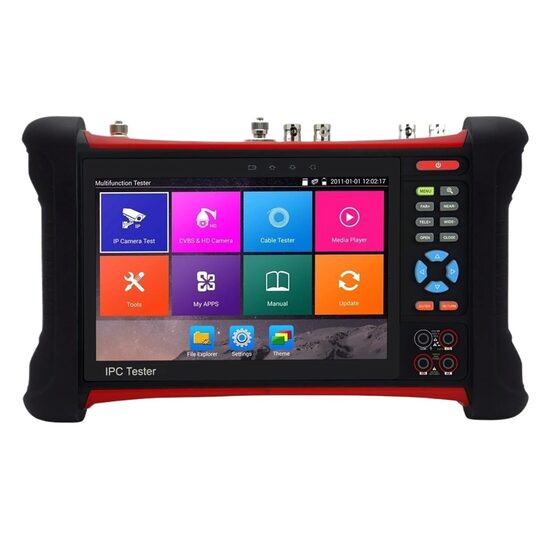

- Tester 7" IPS touchscreen display 1920x1200 pixeli "6 in 1": IP camera, IP, TVI Hikvision, AHD, CVI HD SDI/EX-SDI, analog;
- 8MegaPixel-1MegaPixel IP camera: H.265, HIKVISION, Onvif, Acti, Dahua, Samsung, Honeywell; POE out Maximum power 24W; Network port 10/100M auto adapt,RJ45; POE out 24W.
- TVI: 8 MegaPixel-1 MegaPixel, pana la 3840x2160 pixeli, 15fps,; OSD menu control over coaxial cable;
- AHD: 5 MegaPixel-1 MegaPixel, 2592x1944 pixeli 12,5 fps; OSD menu control over coaxial cable;
- CVI 8 MegaPixel-1 MegaPixel, pana la 3840x2160 pixeli, 12.5fps; OSD menu control over coaxial cable;
- Analogic pentru camere conectate pe cablu coaxial;
- HD SDI/EX-SDI 2megaPixel;
- POE voltage measurement, test the PoE switch voltage to IP camera, Link monitor, check the setting IP adress;
- WiFi, UTP cable tester, HDMI output 1080p; Audio I/O, Network bandwidth testing, Traffic monitoring of the tester "Lan port", display network port or wifi connection real-time upload and download speeds and other network parameters;
- Audio test: 1 ch input si 1 ch out;
- HDMI in Full HD 1920x1080 pixeli; Micro SD card (pentru inregistrari, pana la 32GB);
- Video Input/Output BNC 1/1, Cable tracer, Video level meter for analog camera, Peak level, Sync level, Burst level measurement; DC12V 2A power output for camera;
- HDMI out FullHD 1080p, 1920x1080 pixeli;
- Comanda camere video Speed Dome Pelco P/D; RS485 control, Baud 600-115200bps;
- Power out 12V/2A;DC48V PoE (24W maximum); USB 5V 2A power out;
- Echipat cu acumulator Li-polymer battery, 5000mAh, 10 ore timp de operare, incarcare in 6 ore;
- Dimensiuni 260mm x 160mm x 45mm / 0.62Kg.
