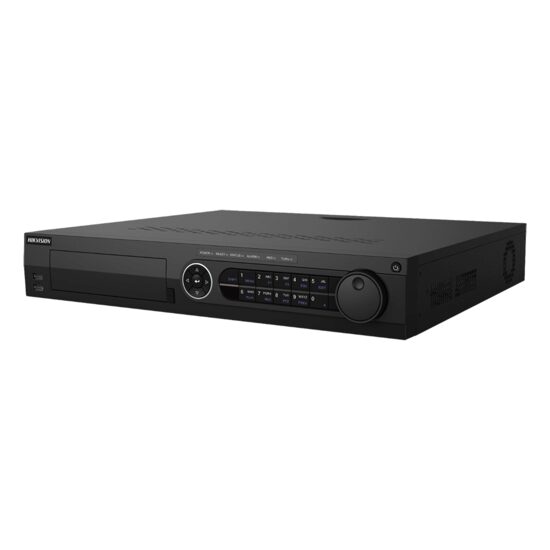

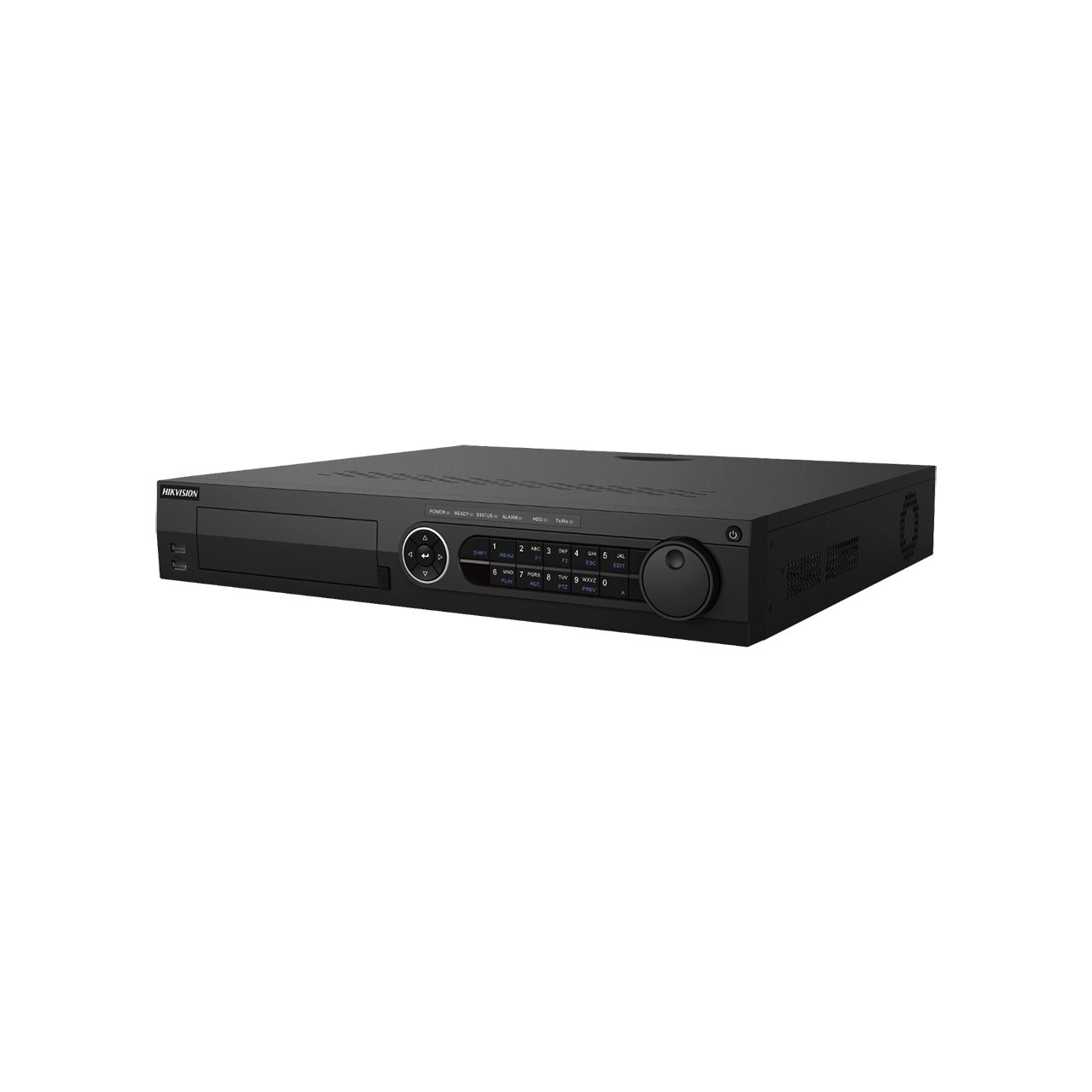

DVR Turbo HD 4.0 4K UltraHD HIBRID TVI-AHD-HDCVI-analogic-IP 16 canale 4K (8MP, 5MP,4MP,3MP,2MP,1 MP, analogic si IP 12MP), inregistreaza 16 camere video supraveghere HIKVISION TurboHD la rezolutie:
-8 MegaPixel TVI 8fps
-5 Megapixel TVI 12fps, TVI 4MegaPixel 15 fps si AHD 4MegaPixel 15 fps, 3MP 18 fps, 2MP-1 MP-analogic 25 fps si 18 (pana la total 34) camere Hikvision IP de pana la 12 MegaPixel H.265+/H.265/H.264+/H.264 (si variante pana la un total de 18 camere/sistem, 320 Mbps); compresie H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
-gestioneaza 4 HDD SATA x 12TB neincluse, RAID 0, 1, 5, 6, 10; eSATA
-iesire video HDMI 2: 4K 3840x2160 pixeli 30Hz si HDMI 1: FullHD 1080p 1920x1080 pixeli 60Hz, VGA out Full HD 1080p 1920x1080 pixeli 60Hz, si CVBS (BNC out)
-vizualizare inregistrari playback local sincron 16 canale video; RS485, RS232; Alarm In/out 16/4, Audion IN/OUT 4/2; 3xUSB;
-2 X RJ45 10M/100M/1000M self-adaptive Ethernet interface
-dimensiuni 445 × 400 × 71 mm;cablare cu cablu coaxial de pana la 500metri, se folosesc conectori BNC;
Utilizeaza simultan camere analogice clasice, camere HIKVISION TurboHD pana la 8 MegaPixel, AHD 4 MegaPixel, MegaPixel CVI si pana la 18 camere IP HIKVISION pana la 12 MegaPixel.
